Dlink DPH-400SE-F4 Kigali Rwanda

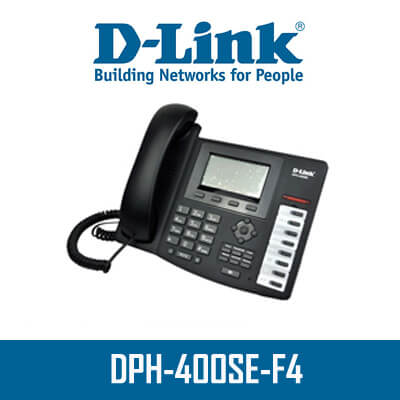

Dlink DPH-400SE-F4

Dlink DPH-400SE-F4 allow you to take advantage of your internet connection, its one of the best phone available in internet technology, Dlink brand assure you the best quality and reliability. The best decision for your business is to choose Dlink IP PBX Kigali with your choice of Dlink IP Phones models. Please contact us for Yealink Phones Kigali and Grandstream IP Phone installation anywhere in Rwanda.

Description

Dlink DPH-400SE-F4

Phone DPH-400SE / E / F3 outfitted withincludes 1 port WAN, that is produced for link with the cable / DSL-modem or broadband router. Also, the main harbour could be linked to a switch with PoE and receiving energy through PoE, where energy shops aren’t available. Another LAN port enables you to definitely connect a pc. This could be a possibility to concurrently talk on IP-phone and check pages to the web, send e-mail, transfer files, and perform other tasks on the pc network.

 Features

Network interfaces
• 1 WAN port 10 / 100BASE-TX PoE-enabled to connect to the Internet
• 1 LAN port 10 / 100BASE-TX to PC
Signal, media and network protocols
• SIP RFC 3261
• SIP RFC 2327
• RTP RFC 1889
• Assign IP-address: Static IP-address, DHCP and PPPoE
• STUN, static port mapping (for NAT traversal)
• SNTP
• DNS and DNS SRV
• TFTP / FTP / HTTP for Auto Provision
• IP / TCP / UDP / ARP / ICMP
• The Router and Bridge
Audio Codecs
• G.711a / u (64 kbit / s)
• G.729A / B (8 Kbit / s)
• G.723.1
• G.722
• G.726-32
Advanced Features
• Silence Suppression
• Acoustic echo cancellation (G.167)
• Ability to connect headsets with RJ-9
• Voice Activity Detection (VAD)
• Comfort Noise Generation
• Jitter-Buffer
• The transmitter DTFM (SIP info, Transparent, RFC 2833)
• Packet Lost Concealment (PLC)
Keyboard
• 4 programmable keys to perform certain functions
• 5 keys SIP line
• MWI
• Headphones
• RLS (Release Key)
• Call Hold (Hold)
• Call forwarding (Transfer)
• Conference (CONF)
• Phonebook
• Call History (History)
• Redial (Redial and write access to the archive of calls; and the completion of a set of call numbers)
• Speaker (Speaker)
• 4 navigation keys for navigating in the settings; Adjusting the call volume, the speaker and handset
• Enter (confirmation button)
• 12 numeric keys, including keys * and #
• Mute (Mute)
• Adjusting the volume (Vol- / Vol +)
Phone Features
• Multiple users (5 user accounts SIP)
• Automatic Caller ID
• Archive Call 100 missed calls, incoming calls 100, 100 outgoing calls
• Phone book (up to 500 contact names and phone numbers)
• Remote phone book (up to 4 phone books in a format xml)
• Date / Time
• Show call timer
• 11 call tones to choose from (9 call tones and 3 melodies)
• 9 numbers for speed dialing
• The incoming call
• Flexible dial map
• Password protection for access to the configuration interface
• Pre-dial before sending
• Ability to connect the expansion module keys
• MWI
• SMS
• Locking the keypad
• Emergency Call
Call functions
• Call Hold Resume
• Mute
• Call Transfer (accompanied or unaccompanied)
• Call Forwarding (busy, no answer, unconditional)
• Call Waiting
• Call Waiting Indication
• Three-way conference
• Anonymous call / Reject
• Message Waiting Indication
• “Do not disturb”
• Auto Answer
• Black list
• Limit List
• Auto hangup
• Automatic Dialing
• The prohibition of certain outgoing calls
• «hot line»
• BLF / Presence
• Intercom
• Call Pickup (Call Pickup)
• Action url / Active uri
Network functions
• QOS: IEEE 802.1p and IEEE 802.1Q
• Diffserv (DSCP) / ToS
• Support for the full range of VLAN ID
• Class of Service Support by VLAN Tag
• LLDP
• L2TP VPN
• OpenVPN – (Warning: the device comes into the territory of the customs union, this functionality is not available)
The user interface / Network Management
• The user interface screen / keyboard in English and other languages
• Web-user interface (HTTP) in English and other languages
• Remote software upgrades via FTP / TFTP / HTTP
• APS auto-provisionning for software updates and profile
• The appearance of renewal in case of damage to the firmware

Physical & Enviromental

Input supply
100 ~ 120, 220 ~ 240V AC via an external power adapter
Power output
5VDC, 1A
Power consumption
• Typical: 2.5 W (Standby)
• Max .: 2.8 W (During a call)
Dimensions
240 x 185 x 45 mm
Weight
0.99 kg
Operating Temperature
From 0 ° to 40 ° C
Storage temperature
-20 ° to 60 ° C
Working Humidity
From 10 to 65% non-condensing
Humidity in storage
From 15 to 85% non-condensing
Certifications
CE Class B
